Designed for Passive Fit.
Accurate. Fast. Open.
R2 Photogram — The Complete MegaGen Full-Mouth Photogrammetry Solution. Sub-20μm accuracy, contact-free scanning, open ecosystem.
MegaGen Full-mouth Solution
Watch how R2 Photogram redefines full-mouth prosthetic workflow.
Experience the Workflow.
See the Result.

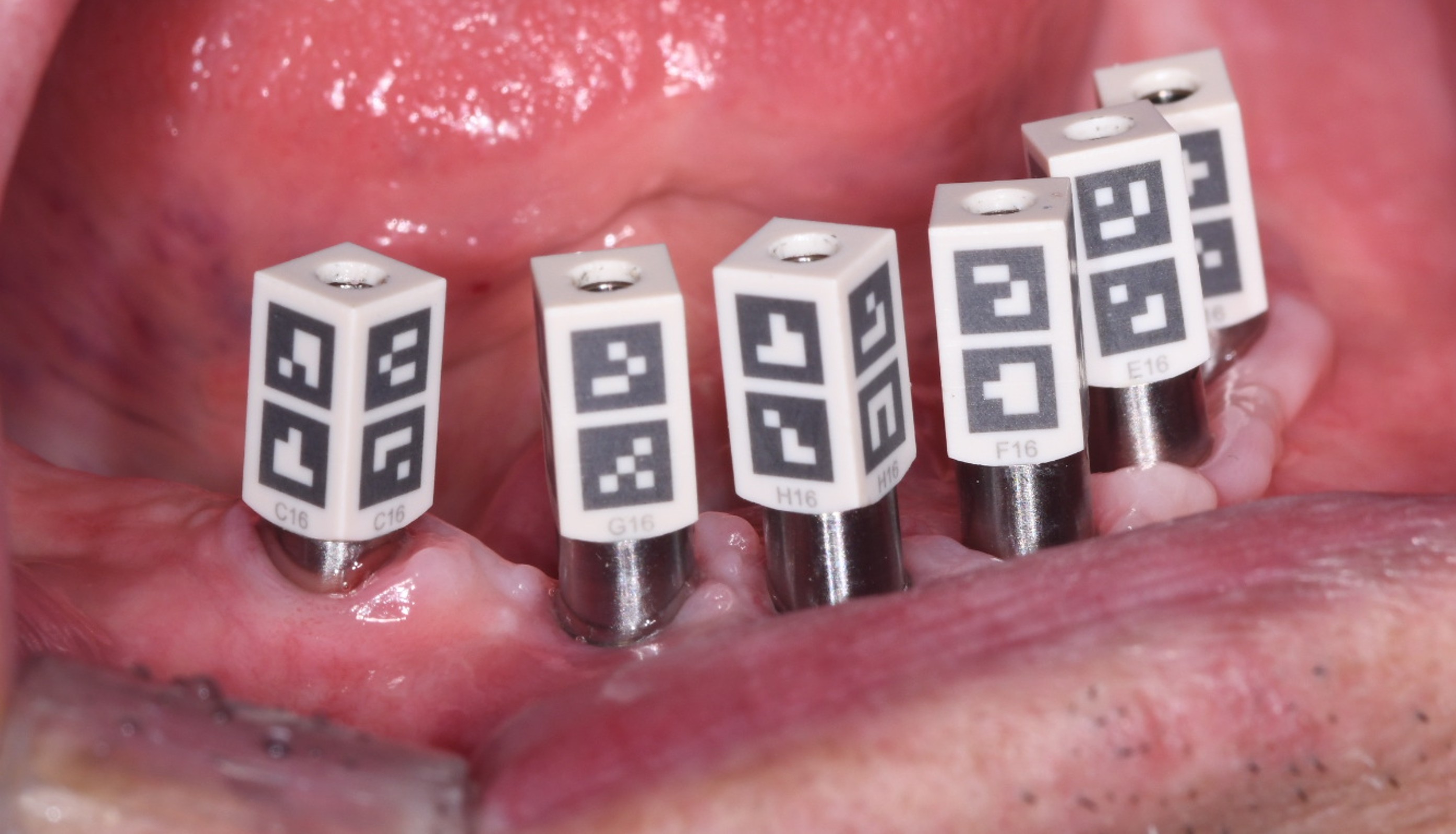

From marker placement to passive fit — R2 Photogram compresses what used to take multiple appointments into a single, 20-second scan. No remakes. No adjustments. Just results.
First Fit. Perfect Fit.
A full-arch restoration delivered with clinical precision — seated at the first attempt, exactly as designed.
Your Next Full-Arch Case
Deserves Better Than Guesswork.
Schedule a hands-on demo with your regional MegaGen America Sales Rep.
Find who covers your state and get in touch — or reach us directly.
Built for Clinicians.
Trusted by Labs.
Every detail engineered for precision, comfort, and a faster workflow.
Sub-20μm Accuracy
Positional accuracy under 10–20μm and angular accuracy under 1°. Reliable every time.
20-Second Scan
Captures 2–8 implant positions in as little as 20 seconds for a full All-on-X case.
Open STL Output
Exports STL compatible with exocad, 3Shape, and all major CAD platforms.
No Per-Use Calibration
One-time setup. No calibration needed before each scan — simple, direct operation.
Contact-Free
Extraoral photogrammetry eliminates patient discomfort and shortens treatment time.
AXA & MUA Ready
Works with AXA and MUA N Type abutments. Pairs with any intraoral scanner for soft tissue.
Specifications
| Dimensions (L×W×H) | 179.8 × 174.3 × 75mm |
| Weight | 1.3 kg |
| Battery | 2500mAh · up to 3 hours |
| Measuring Space | 90 × 90 × 50mm |
| Measuring Distance | 260mm |
| Implant Detection | 2 – 8 implants |
| Positional Accuracy | <20–30μm |
| Angular Accuracy | <1° |
| Scan Speed | Max 20 sec (All-on-X) |
| Output | STL (USB 3.0) |
| Compatible Abutments | AXA, MUA N Type |
| PC Requirements | Intel Core i7 8-core 2.3GHz+, 16GB RAM, NVIDIA GPU 6GB+ VRAM (AMD GPUs not supported), Windows 10 64-bit |
Download
Software & CAD libraries for R2Photogram users.
